Blazing Fast Pods - Image Preloading
Let’s continue our journey towards blazing fast pods on Kubernetes. In Blazing Fast Pods - Placeholder Pattern
we saw how to get a pod scheduled immediately. But, that’s just the beginning. Once the pod is scheduled to a node Kubernetes needs to download the images of all its containers before it can run. Ideally, the images are already on the node. Let’s see how to make it happen every time.
“Victory loves preparation” ~ Latin proverb
The problem
The problem is that large images can take a while to download into the node. For example, here I run my favorite debug pod
❯ kubectl run -it --image g1g1/py-kube -- bash
All commands and output from this session will be recorded in container logs, including credentials and sensitive information passed through the command prompt.
If you don't see a command prompt, try pressing enter.
kuser@bash:/app$
Let’s check the events and see how long it took to load the image:
❯ kubectl describe po bash | rg Events: -A 10
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 4m16s default-scheduler Successfully assigned default/bash to kind-control-plane
Normal Pulling 4m16s kubelet Pulling image "g1g1/py-kube"
Normal Pulled 4m kubelet Successfully pulled image "g1g1/py-kube" in 15.981s (15.981s including waiting). Image size: 129338587 bytes.
Normal Created 4m kubelet Created container: bash
Normal Started 4m kubelet Started container bash
So, it took about 16 seconds to download 129,338,587 bytes for this image. That’s compressed layers that need to be decompressed and copied to disk. The bigger the image the longer the wait. But, that’s not all. If your pod has multiple containers, Kubernetes will load the images for each container sequentially. There is no way to download images in parallel to the same node.
Here is a pod with three containers.
echo 'apiVersion: v1
kind: Pod
metadata:
name: tri-lang
spec:
restartPolicy: Never
containers:
- name: python
image: python:3.12-slim
command: ["sleep","infinity"]
- name: golang
image: golang:1.23
command: ["sleep","infinity"]
- name: rust
image: rust:1.83
command: ["sleep","infinity"]' | kubectl apply -f -
pod/tri-lang created
Let’s see how it long takes to load all the images:
❯ kubectl describe po tri-lang | rg Events: -A 20
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 105s default-scheduler Successfully assigned default/tri-lang to kind-control-plane
Normal Pulling 105s kubelet Pulling image "python:3.12-slim"
Normal Pulled 101s kubelet Successfully pulled image "python:3.12-slim" in 4.425s (4.425s including waiting). Image size: 43474862 bytes.
Normal Created 100s kubelet Created container: python
Normal Started 100s kubelet Started container python
Normal Pulling 100s kubelet Pulling image "golang:1.23"
Normal Pulled 85s kubelet Successfully pulled image "golang:1.23" in 15.727s (15.727s including waiting). Image size: 293403951 bytes.
Normal Created 85s kubelet Created container: golang
Normal Started 85s kubelet Started container golang
Normal Pulling 85s kubelet Pulling image "rust:1.83"
Normal Pulled 63s kubelet Successfully pulled image "rust:1.83" in 21.129s (21.129s including waiting). Image size: 590583972 bytes.
Normal Created 63s kubelet Created container: rust
Normal Started 63s kubelet Started container rust

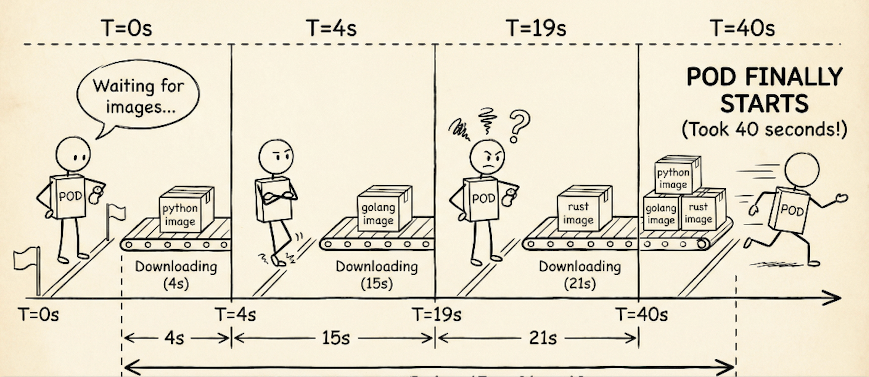

As you can see the first image (Python) is downloaded and the container is started and only then the Golang image is downloaded and finally Rust. Overall it took more than 40 seconds to download the images.
But, it can be even worse. If another pod is scheduled to the node at about the same time and that pod starts downloading an image our pod might have to wait for that pod.
The bottom line is that big images can really slow down your pod. We want our pods to be blazing fast. Let’s get it!
The Solution
The solution is conceptually super simple. The images should already be present on the node, so we don’t have to download them. Let’s create another pod with the same containers.
❯echo 'apiVersion: v1
kind: Pod
metadata:
name: tri-lang2
spec:
restartPolicy: Never
containers:
- name: python
image: python:3.12-slim
command: ["sleep","infinity"]
- name: golang
image: golang:1.23
command: ["sleep","infinity"]
- name: rust
image: rust:1.83
command: ["sleep","infinity"]' | kubectl apply -f -
pod/tri-lang2 created
Now, the pod starts within a second because all the images are already present:
❯kubectl describe po tri-lang2 | rg Events: -A 20
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 63s default-scheduler Successfully assigned default/tri-lang2 to kind-control-plane
Normal Pulled 63s kubelet Container image "python:3.12-slim" already present on machine
Normal Created 63s kubelet Created container: python
Normal Started 63s kubelet Started container python
Normal Pulled 63s kubelet Container image "golang:1.23" already present on machine
Normal Created 63s kubelet Created container: golang
Normal Started 63s kubelet Started container golang
Normal Pulled 63s kubelet Container image "rust:1.83" already present on machine
Normal Created 63s kubelet Created container: rust
Normal Started 63s kubelet Started container rus
The Image Preloader

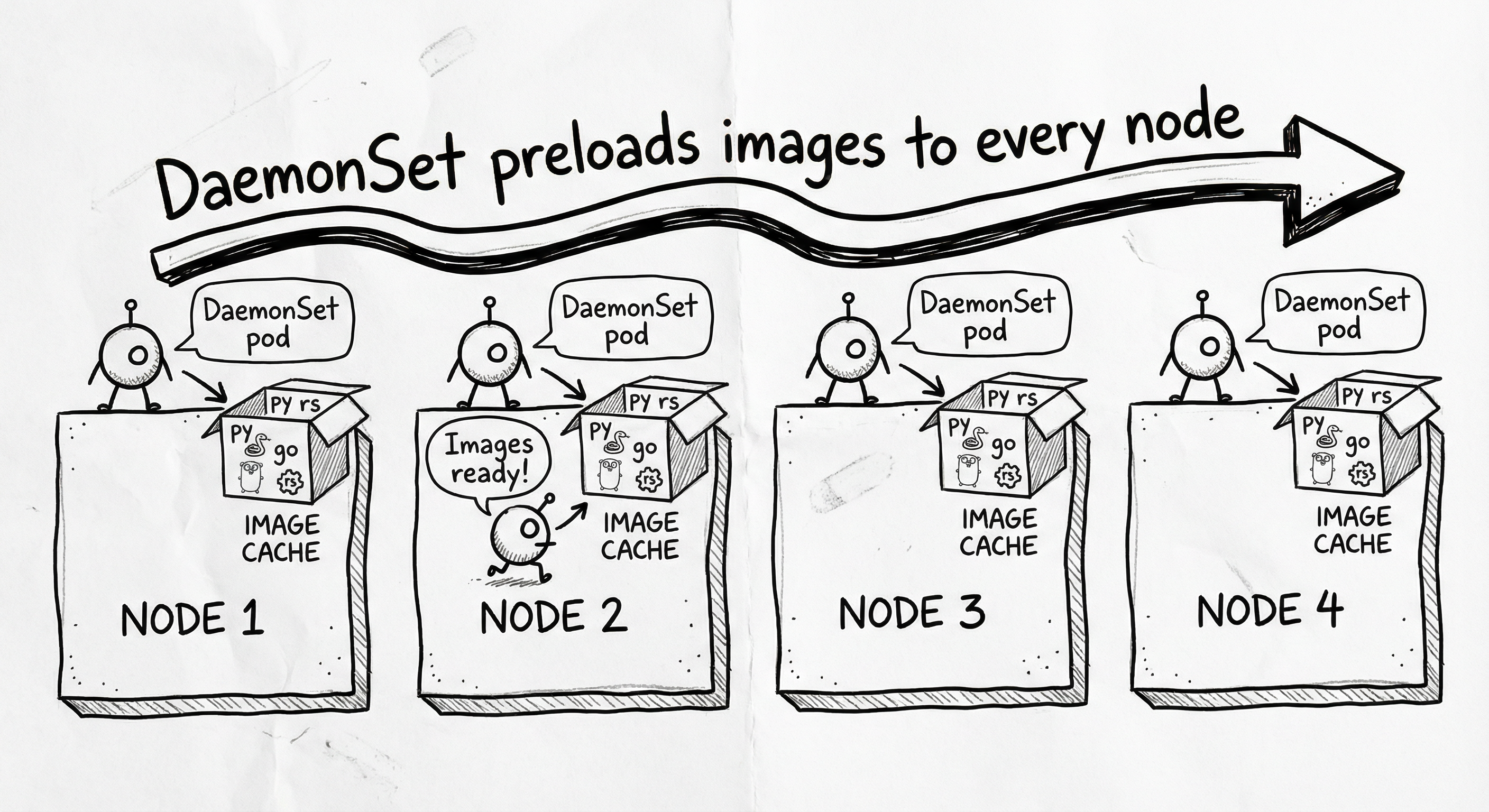

OK. But, how do we make sure the images are always present on every node? This is where the Kubernetes DaemonSet comes in. The DaemonSet is a workload that is automatically provisioned on every node (or on every node that meets some condition).
But, we don’t want the DaemonSet to actually hog any resources on the node. All we want are the images. A nice trick is use init containers. Init containers in a pod are containers that Kubernetes loads before the regular containers, and when they are done it unloads them.
Let’s put it all together.
echo '
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: image-preloader
namespace: kube-system
spec:
selector:
matchLabels:
app: image-preloader
template:
metadata:
labels:
app: image-preloader
spec:
tolerations:
- operator: Exists
initContainers:
- name: preload-py-kube
image: g1g1/py-kube
imagePullPolicy: IfNotPresent
command: ["/bin/sh", "-c", "echo preloaded g1g1/py-kube"]
- name: preload-python
image: python:3.12-slim
imagePullPolicy: IfNotPresent
command: ["/bin/sh", "-c", "echo preloaded python:3.12-slim"]
- name: preload-golang
image: golang:1.23
imagePullPolicy: IfNotPresent
command: ["/bin/sh", "-c", "echo preloaded golang:1.23"]
- name: preload-rust
image: rust:1.83
imagePullPolicy: IfNotPresent
command: ["/bin/sh", "-c", "echo preloaded rust:1.83"]
containers:
- name: pause
image: registry.k8s.io/pause:3.9
imagePullPolicy: IfNotPresent
' | kubectl apply -f -
Getting serious
Let’s do a full hands-on repro from scratch on a local kind cluster. (Your pod names and timings may differ.)
1. Select your kind context
Make sure you’re working with your kind cluster. The output confirms we’re connected to a single-node cluster that’s Ready.
❯ kubectl config use-context kind-kind
Switched to context "kind-kind".
❯ kubectl get nodes -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
kind-control-plane Ready control-plane 28h v1.33.1 172.19.0.7 <none> Debian GNU/Linux 12 (bookworm) 6.10.14-linuxkit containerd://2.1.1
2. Delete pods and the preloader
Clean up any existing test pods and remove the old preloader DaemonSet if it exists. This ensures we start from a clean state.
❯ kubectl delete pod --all -n default
pod "tri-lang" deleted
❯ kubectl -n kube-system delete ds image-preloader --ignore-not-found=true
DaemonSet.apps "image-preloader" deleted
3. Connect to the node and remove images
In kind, each node is a Docker container. We’ll exec into it and use containerd tooling to list and remove images.
This step simulates starting with a node that doesn’t have our application images cached.
List the images (output shows 5 image references - one image has both a tag and digest reference):
❯ docker exec kind-control-plane sh -lc 'ctr -n k8s.io images ls -q | egrep "(g1g1/py-kube|python:3.12-slim|golang:1.23|rust:1.83)" || true'
docker.io/g1g1/py-kube:latest
docker.io/g1g1/py-kube@sha256:1910d1835ca6b92ce1611f4115928a417e17d06b2ee89ce65aafda3070d044f9
docker.io/library/golang:1.23
docker.io/library/python:3.12-slim
docker.io/library/rust:1.83
Remove them (the output echoes each image reference as it’s deleted):
❯ docker exec kind-control-plane sh -lc 'ctr -n k8s.io images ls -q | egrep "(g1g1/py-kube|python:3.12-slim|golang:1.23|rust:1.83)" | xargs -r ctr -n k8s.io images rm'
docker.io/g1g1/py-kube:latest
docker.io/g1g1/py-kube@sha256:1910d1835ca6b92ce1611f4115928a417e17d06b2ee89ce65aafda3070d044f9
docker.io/library/golang:1.23
docker.io/library/python:3.12-slim
docker.io/library/rust:1.83
Verify they’re gone (the “(none)” output confirms no matching images remain):
❯ docker exec kind-control-plane sh -lc 'ctr -n k8s.io images ls -q | egrep "(g1g1/py-kube|python:3.12-slim|golang:1.23|rust:1.83)" || echo "(none)"'
(none
4. the preloader and verify it pulled all images
Deploy the DaemonSet using the echo ... | kubectl apply -f - command from the previous section. The rollout status
command blocks until the DaemonSet is fully deployed.
❯ kubectl -n kube-system rollout status ds/image-preloader --timeout=180s
Waiting for daemon set "image-preloader" rollout to finish: 0 of 1 updated pods are available...
daemon set "image-preloader" successfully rolled out
Now inspect the preloader pod events. This is the proof that the preloader actually pulled all the images. Notice:
- Each init container pulls its image sequentially (not in parallel)
- Pull times: g1g1/py-kube (7.4s), python (4.2s), golang (11.8s), rust (18.1s), pause (1.3s)
- Total time: ~43 seconds to pull all images
- The images range from 268KB to 590MB in size
❯ kubectl -n kube-system describe pod -l app=image-preloader | rg "^Events:" -A 50
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 58s default-scheduler Successfully assigned kube-system/image-preloader-4p7pd to kind-control-plane
Normal Pulling 58s kubelet Pulling image "g1g1/py-kube"
Normal Pulled 51s kubelet Successfully pulled image "g1g1/py-kube" in 7.362s (7.362s including waiting). Image size: 129338587 bytes.
Normal Created 51s kubelet Created container: preload-py-kube
Normal Started 51s kubelet Started container preload-py-kube
Normal Pulling 49s kubelet Pulling image "python:3.12-slim"
Normal Pulled 45s kubelet Successfully pulled image "python:3.12-slim" in 4.222s (4.222s including waiting). Image size: 43474862 bytes.
Normal Created 45s kubelet Created container: preload-python
Normal Started 45s kubelet Started container preload-python
Normal Pulling 44s kubelet Pulling image "golang:1.23"
Normal Pulled 32s kubelet Successfully pulled image "golang:1.23" in 11.79s (11.79s including waiting). Image size: 293403951 bytes.
Normal Created 32s kubelet Created container: preload-golang
Normal Started 32s kubelet Started container preload-golang
Normal Pulling 31s kubelet Pulling image "rust:1.83"
Normal Pulled 13s kubelet Successfully pulled image "rust:1.83" in 18.137s (18.137s including waiting). Image size: 590583972 bytes.
Normal Created 13s kubelet Created container: preload-rust
Normal Started 13s kubelet Started container preload-rust
Normal Pulling 12s kubelet Pulling image "registry.k8s.io/pause:3.9"
Normal Pulled 11s kubelet Successfully pulled image "registry.k8s.io/pause:3.9" in 1.269s (1.269s including waiting). Image size: 268051 bytes.
Normal Created 11s kubelet Created container: pause
Normal Started 10s kubelet Started container pause
5. Create tri-lang and confirm zero pulling
Now let’s create a regular pod using the same three images. The wait command blocks until the pod is Ready.
❯ echo 'apiVersion: v1
kind: Pod
metadata:
name: tri-lang
spec:
restartPolicy: Never
containers:
- name: python
image: python:3.12-slim
command: ["sleep","infinity"]
- name: golang
image: golang:1.23
command: ["sleep","infinity"]
- name: rust
image: rust:1.83
command: ["sleep","infinity"]' | kubectl apply -f -
pod/tri-lang created
❯ kubectl -n default wait --for=condition=Ready pod/tri-lang --timeout=180s
pod/tri-lang condition met
Let’s check the events and notice the key difference: all three images show “already present on machine”. No pulling! The pod becomes Ready in about 1 second instead of the 40+ seconds it would have taken to pull the images. This is the payoff of image preloading.
❯ kubectl describe po tri-lang | rg "^Events:" -A 20
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 21s default-scheduler Successfully assigned default/tri-lang to kind-control-plane
Normal Pulled 20s kubelet Container image "python:3.12-slim" already present on machine
Normal Created 20s kubelet Created container: python
Normal Started 20s kubelet Started container python
Normal Pulled 20s kubelet Container image "golang:1.23" already present on machine
Normal Created 20s kubelet Created container: golang
Normal Started 20s kubelet Started container golang
Normal Pulled 20s kubelet Container image "rust:1.83" already present on machine
Normal Created 20s kubelet Created container: rust
Normal Started 20s kubelet Started container rust
Image Preloading Design
Image preloading is a useful and effective technique on the quest for the holy grale of instant pods. But, not every pod requires instant loading. Your pre-loader DaemonSet shouldn’t pre-load each and every image you may want to run in your cluster. Exercise judgement and curate the set of images you need to preload.
Note that the DaemonSet manifest configuration includes the versions of every image and must be updated regularly ( hopefully you have a proper GitOps-based CI/CD process).
If you run a sophisticated setup with multiple node pools where specific workloads are desginated to specific node pools then it makes sense to have multiple pre-loader DaemonSets with node affinity and toleration for the target node pools.
Example: Multiple Node Pools with Targeted Preloading
Let’s say you have two node pools in your cluster:
1. ML Node Pool - GPU nodes for machine learning workloads:
- Label:
workload-type=ml - Taint:
workload=ml:NoSchedule(prevents non-ML pods from scheduling here)
2. Web Node Pool - Standard nodes for web services:
- Label:
workload-type=web - Taint:
workload=web:NoSchedule(prevents non-web pods from scheduling here)
Here’s how to create targeted preloader DaemonSets for each pool:
ML Node Pool Preloader:
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: image-preloader-ml
namespace: kube-system
spec:
selector:
matchLabels:
app: image-preloader-ml
template:
metadata:
labels:
app: image-preloader-ml
spec:
# Target ML nodes with node affinity
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: workload-type
operator: In
values:
- ml
# Tolerate the ML taint
tolerations:
- key: workload
operator: Equal
value: ml
effect: NoSchedule
initContainers:
# ML-specific images
- name: preload-pytorch
image: pytorch/pytorch:2.1.0-cuda12.1-cudnn8-runtime
imagePullPolicy: IfNotPresent
command: [ "/bin/sh", "-c", "echo preloaded pytorch" ]
- name: preload-tensorflow
image: tensorflow/tensorflow:2.15.0-gpu
imagePullPolicy: IfNotPresent
command: [ "/bin/sh", "-c", "echo preloaded tensorflow" ]
- name: preload-jupyter
image: jupyter/scipy-notebook:latest
imagePullPolicy: IfNotPresent
command: [ "/bin/sh", "-c", "echo preloaded jupyter" ]
containers:
- name: pause
image: registry.k8s.io/pause:3.9
imagePullPolicy: IfNotPresent
Web Node Pool Preloader:
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: image-preloader-web
namespace: kube-system
spec:
selector:
matchLabels:
app: image-preloader-web
template:
metadata:
labels:
app: image-preloader-web
spec:
# Target web nodes with node affinity
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: workload-type
operator: In
values:
- web
# Tolerate the web taint
tolerations:
- key: workload
operator: Equal
value: web
effect: NoSchedule
initContainers:
# Web-specific images
- name: preload-nginx
image: nginx:1.25-alpine
imagePullPolicy: IfNotPresent
command: [ "/bin/sh", "-c", "echo preloaded nginx" ]
- name: preload-node
image: node:20-alpine
imagePullPolicy: IfNotPresent
command: [ "/bin/sh", "-c", "echo preloaded node" ]
- name: preload-redis
image: redis:7-alpine
imagePullPolicy: IfNotPresent
command: [ "/bin/sh", "-c", "echo preloaded redis" ]
containers:
- name: pause
image: registry.k8s.io/pause:3.9
imagePullPolicy: IfNotPresent
This approach ensures:
- ML images (large, GPU-enabled) only preload on expensive GPU nodes
- Web images (smaller, more frequent) only preload on standard nodes
- Each pool gets exactly the images it needs, nothing more
- Resource efficiency: no wasted disk space on unnecessary images
Image Storage and Cleanup Strategy
Image preloading is powerful, but it introduces important operational considerations around disk space management and garbage collection. Let’s address them systematically.
Where Are Images Stored?
Container images are stored on the node’s root volume under /var/lib/containerd/ (or /var/lib/docker/ for older setups).
In different environments:
- kind: Docker container’s filesystem (typically 20-50GB)
- EKS: EC2 instance root EBS volume (default often 20GB - may be too small!)
- GKE: Boot disk of the node (default varies by machine type)
- AKS: OS disk of the node (default 30-128GB depending on VM size)
Critical: You need to allocate sufficient disk space for:
- Operating system (~5-10GB)
- Preloaded images (e.g., 4 images × 300MB each = 1.2GB)
- Application workload images (not preloaded)
- Multiple versions during updates (×2-3 multiplier)
- Safety buffer (20-30%)
Example calculation:
Preloaded: 4 images × 300MB = 1.2GB
App images: 10 images × 500MB = 5GB
Versions: 2x multiplier = 12.4GB
Buffer: 30% = 16.1GB
OS: 10GB
Total: ~30GB minimum
The Kubelet Garbage Collection Problem
The Kubelet automatically cleans up unused images every 5 minutes when disk usage crosses imageGCHighThresholdPercent (default: 85%). It removes images based on last used time (oldest first). This is a problem for our preloaded images as the kubelet might remove important images that will require pulling when a container needs them.
The Solution: Custom Image Cleanup
The solution has two parts that work together:
Part 1: Disable Kubelet’s Automatic Image GC**
We configure kubelet to never trigger automatic garbage collection:
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
imageGCHighThresholdPercent: 100 # Never trigger GC (disk must be 100% full)
imageGCLowThresholdPercent: 80 # If GC somehow triggers, stop at 80%
What this does:
- When disk < 100%: Kubelet does nothing. Images stay forever.
- When disk = 100%: Kubelet tries GC as a last resort (but we have much bigger problems if ran out of disk space completely)
Our custom cleanup (Part 2) is responsible for all image management.
Part 2: Add Smart Cleanup to the Preloader
Since we’ve disabled kubelet’s automatic cleanup in Part 1, we need our own cleanup logic. Instead of deploying a separate DaemonSet, we can simply replace the useless pause container with a cleanup container!
- Init containers: Preload images (same as before)
- Main container: Replace
pausewith a cleanup container that:- Runs cleanup daily at 3 AM
- Keeps last 2 versions of ANY image on the node
- Always checks if images are in use before removing
Here’s the improved DaemonSet:
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: image-preloader
namespace: kube-system
spec:
selector:
matchLabels:
app: image-preloader
template:
metadata:
labels:
app: image-preloader
spec:
tolerations:
- operator: Exists
hostPID: true
initContainers:
- name: preload-py-kube
image: g1g1/py-kube
imagePullPolicy: IfNotPresent
command: ["/bin/sh", "-c", "echo preloaded g1g1/py-kube"]
- name: preload-python
image: python:3.12-slim
imagePullPolicy: IfNotPresent
command: ["/bin/sh", "-c", "echo preloaded python:3.12-slim"]
- name: preload-golang
image: golang:1.23
imagePullPolicy: IfNotPresent
command: ["/bin/sh", "-c", "echo preloaded golang:1.23"]
- name: preload-rust
image: rust:1.83
imagePullPolicy: IfNotPresent
command: ["/bin/sh", "-c", "echo preloaded rust:1.83"]
containers:
- name: cleanup
image: alpine:3.19
command: ["/bin/sh", "-c"]
args:
- |
cleanup_images() {
echo "=== Image cleanup on $(hostname) at $(date) ==="
# Get all images grouped by base name
nsenter -t 1 -m -u -i -n -p ctr -n k8s.io images ls -q | while read image; do
# Extract base name (without tag/digest)
base=$(echo "$image" | sed 's/:.*$//' | sed 's/@.*$//')
echo "$base|$image"
done | sort > /tmp/all_images.txt
# For each unique base, keep last 2 versions
cat /tmp/all_images.txt | cut -d'|' -f1 | uniq | while read base; do
# Get all versions of this image, keep newest 2
grep "^${base}|" /tmp/all_images.txt | cut -d'|' -f2 | tail -n +3 | while read old_image; do
# Check if image is in use
in_use=$(nsenter -t 1 -m -u -i -n -p ctr -n k8s.io containers ls -q | \
xargs -I {} nsenter -t 1 -m -u -i -n -p ctr -n k8s.io containers info {} 2>/dev/null | \
grep -c "$old_image" || true)
if [ "$in_use" -eq 0 ]; then
echo " Removing old version: $old_image"
nsenter -t 1 -m -u -i -n -p ctr -n k8s.io images rm "$old_image" 2>/dev/null || true
else
echo " Keeping (in use): $old_image"
fi
done
done
rm -f /tmp/all_images.txt
echo "=== Cleanup complete ==="
}
while true; do
if [ "$(date +%H)" = "03" ] && [ "$(date +%M)" = "00" ]; then
cleanup_images
sleep 120
fi
sleep 60
done
securityContext:
privileged: true
Key changes from the simple version:
- Added
hostPID: trueto access the node’s containerd - Replaced
pausecontainer withcleanupcontainer - Cleanup keeps last 2 versions of every image (not just preloaded ones)

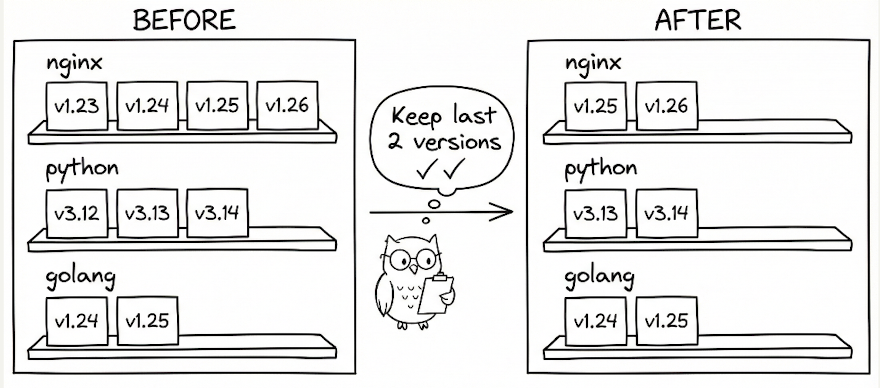

Example cleanup behavior:
All images on disk before cleanup:
- nginx:1.23, 1.24, 1.25, 1.26
- python:3.12, 3.13, 3.14
- golang:1.24, 1.25
- the-app:v1.0, v1.1, v1.2, v1.3
After cleanup (keeps last 2 of each):
- nginx:1.25, 1.26 ✓ (last 2 kept)
- python:3.13, 3.14 ✓ (last 2 kept)
- golang:1.24, 1.25 ✓ (both kept - only 2 exist)
- the-app:v1.2, v1.3 ✓ (last 2 kept)
Removed: nginx:1.23, 1.24, python:3.12, the-app:v1.0, v1.1
🏠 Take Home Points 🏠
- Once a pod is scheduled on a node it needs to pull all its container images if not already present
- Downloading large images can take a substantial time, especially if the pod has multiple containers
- Even worse, the images must be pulled one after the other and might even be blocked by other pods pulling images
- The solution is simply to ensure the images are always available on every node by using a preloader DaemonSet
- You can have different preloader DaemonSets with different images on different node pools
- Disable the built-in kubelet image GC and let preloader take care of intelligent unused image pruning
🇪🇸 Agur lagunak 🇪🇸
